Geosynthetic Bentonite Clay Pond Liner (GCL)
GCL is a high-performance geosynthetic material designed specifically for lining ponds and water containment applications. It consists of a layer of natural sodium bentonite clay encapsulated between two geotextile layers. The bentonite clay has self-healing properties which seal small punctures automatically, and prevents the types of leaks that can occur with other types of pond liner. The unique composition of this pond liner creates a highly effective barrier against water seepage, making it an ideal choice for pond construction and rehabilitation projects.
Geosynthetic clay pond liner offers a natural, self-sealing solution that’s ideal for both large-scale lakes and small garden ponds. Lightweight, eco-friendly, and incredibly durable, it forms a reliable waterproof barrier that adapts to your pond shape and lasts for decades.
- Virtually Leak-Proof & Self-Sealing: Bentonite liner (Bentofix®) swells to seal punctures naturally, delivering highly effective waterproof protection.
- Eco-Friendly & Sustainable: Made from 100% natural bentonite clay, it’s a non-toxic, wildlife-safe liner that supports a greener environment.
- Durable & Low Maintenance: The self-sealing properties ensure fewer repairs and a long-lasting, worry-free pond liner solution.
- Versatile for All Pond Sizes: Perfectly suited for small garden ponds to large lakes, offering tailored performance across the board.
THE SCIENCE STUFF!
What is GCL?
Geosynthetic Clay Liner (GCL) is a modern, eco-friendly pond liner made from natural sodium bentonite clay sandwiched between two protective geotextile layers. This unique combination creates a durable, flexible, and almost maintenance-free liner that forms a strong waterproof barrier, making it perfect for garden ponds, wildlife ponds, and water features of all sizes.
How Does GCL Work?
The secret is in the bentonite clay. When it comes into contact with water, the clay swells and forms a dense, self-sealing layer that automatically closes small punctures, helping to prevent leaks. The outer geotextile layers protect the clay, add strength, and keep it in place. GCL comes in convenient rolls that are easy to position, overlap, and secure, providing a continuous, reliable liner. Once installed, it gradually hydrates from the water or surrounding soil, activating its natural sealing properties for a long-lasting, worry-free pond.
Installing ponds using Geosynthetic Bentonite Clay Pond Liner (GCL)
Creating ponds using Geosynthetic Bentonite Clay Pond Liner (GCL) should be a relatively straightforward process when installed properly. However, you would be surprised at the number of bad installations we have seen over the years
That’s why we offer you guidance and support for each stage of your pond design and construction project, so you won’t be left with a miserable, stagnant and leaky pond! – Call 086 609 0355 or Contact us for more information

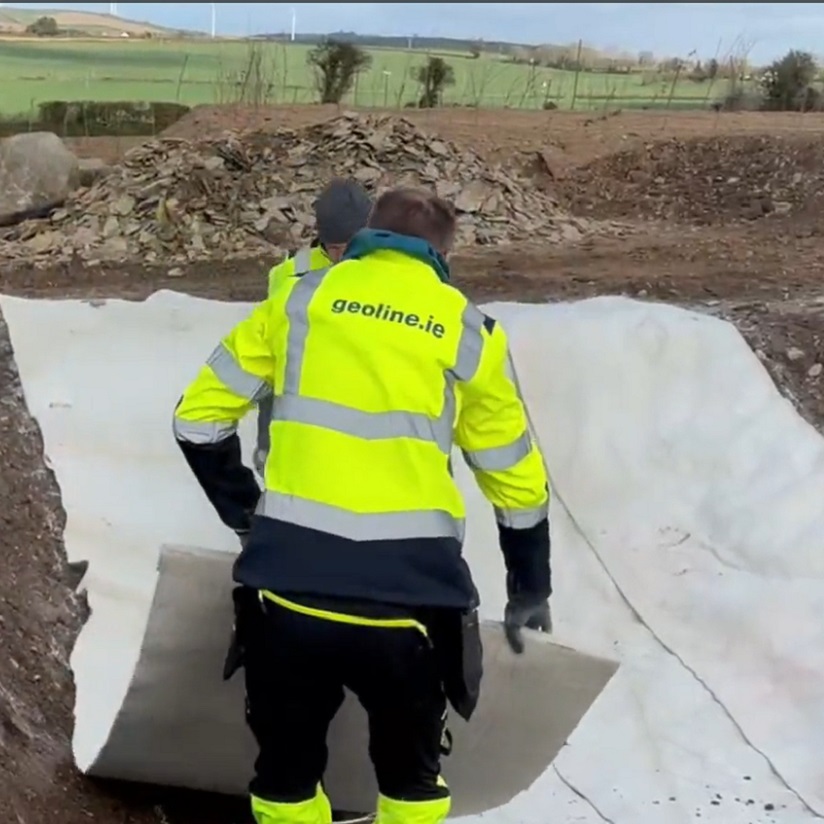

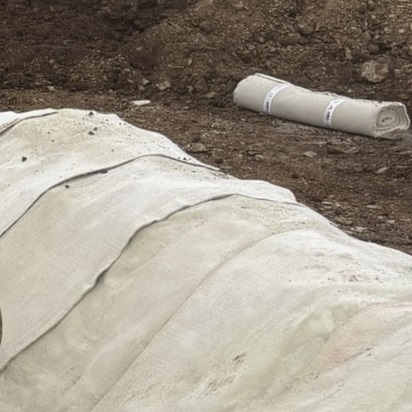

To install, unroll the GCL over the prepared pond area, ensuring that it covers and overlaps the entire surface, and extends around the perimeter. Secure the edges and seams, put at least 1ft of soil over the liner, bottoms, sides and perimeter. Ensure all the soil is fully compacted, and finally fill pond with water. The self-sealing properties of the bentonite clay within the liner provide an effective barrier, preventing water leakage and ensuring a durable and reliable pond.
PLEASE NOTE!
When installing GCL, the overlapping clay must be sealed, and the pond must be backfilled with at least 1ft of soil on the bottom, sides and the perimeter of the pond, and subsequently compacted to securely cover all the GCL.
Please talk to us before you decide
with kind permission from Bosco’s Garden: https://boscosgarden.com/
Benefits
Why Choose Bentonite GCL Pond Liners
- Superior Waterproofing: The bentonite clay swells when it meets water, forming a dense, self-sealing barrier that keeps your pond watertight.
- Self-Sealing & Low Maintenance: Small punctures or tears automatically seal themselves, reducing repairs and long-term upkeep.
- Durable & Chemically Resistant: The liner withstands UV exposure, chemicals, and pollutants, ensuring long-lasting performance.
- Flexible & Adaptable: GCL conforms to irregular surfaces and accommodates minor ground movements without compromising the seal.
- Enhanced Stability: Geotextile layers reinforce the liner, preventing shifting or damage and maintaining pond integrity.
- Lightweight & Easy to Install: Rolls are easy to handle, transport, and position, making installation straightforward and less labor-intensive.
- Eco-Friendly: Made from natural materials, GCL provides a sustainable pond-lining solution.
- Cost-Effective: Compact and efficient, it reduces material waste and installation costs while providing long-term reliability.
In conclusion, Geosynthetic Bentonite Clay Pond Liner (GCL) offers numerous advantages over standard EPDM pond liners. Its superior waterproofing, self-sealing properties, chemical resistance, enhanced stability, and ease of installation make it an exceptional choice for any pond construction or rehabilitation project.
Call 086 609 0355 or Contact us to learn more about GCL and how it can transform your pond into a reliable and long-lasting water feature.
